25-50kA UL 1449 4th Type 1 Listed

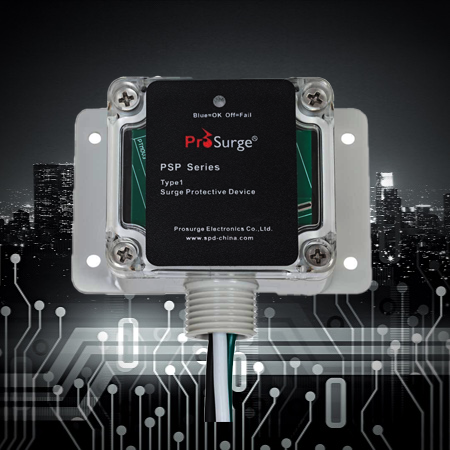

Panel Surge Protection Device (Panel SPD) – PSP Series
Prosurge® PSP series panel surge protection device are defined as one-stop high performance surge protection solution for most commercial and industrial environment with critical operations, including Type 1 and Type 2 surge protection devices that protect against the harmful effects of transient surges.
These surges are the result of:
✔ Direct and indirect lightning strikes
✔ Power company load switching
✔ Upstream load switch at other facilities
PROSURGE® PSP E series

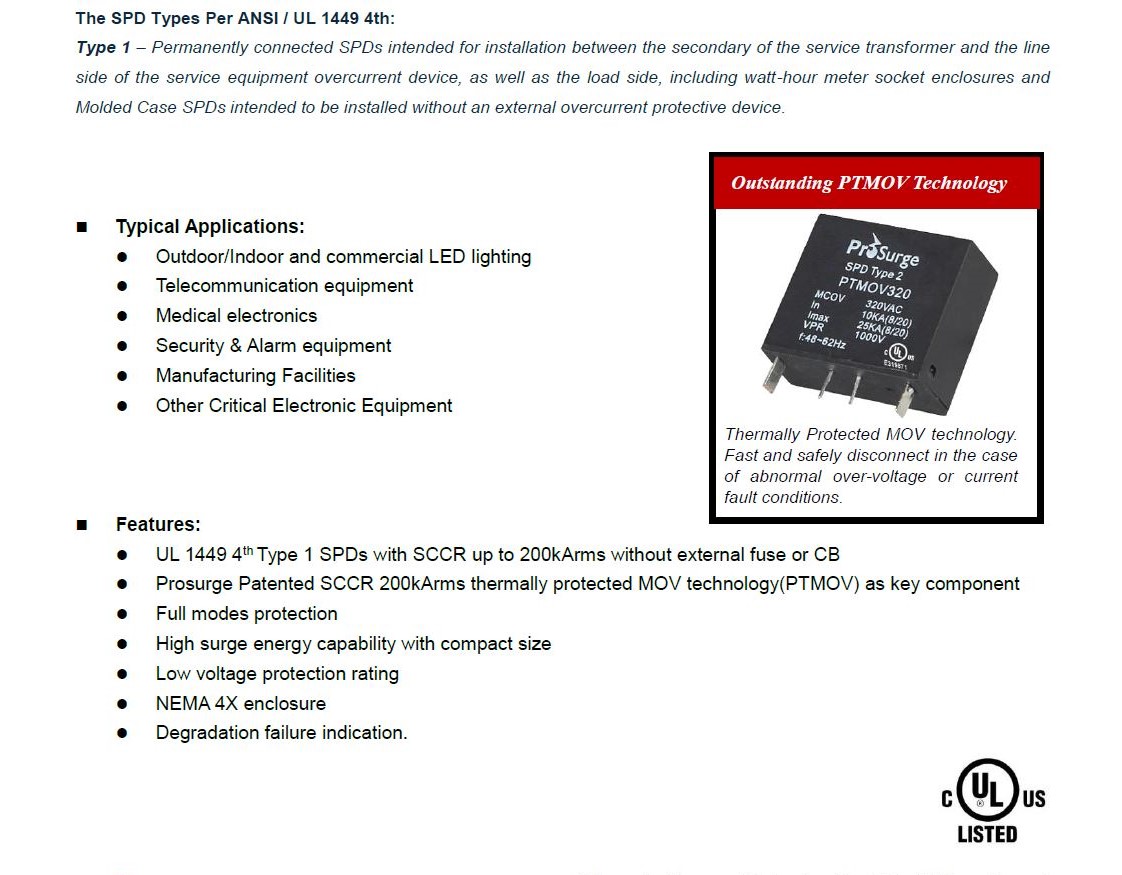

The PSP E is constructed with Prosurge’s patented PTMOV, which has a thermally protected and arc extinguishing technology as the core of Prosurge’s competency. PSP E has a significant advantage in abnormal over-voltage & high fault current safety and thus ensure industry’s highest level of safety and performance. PSP E is tested and listed as Type 1 SPD in ANSI / UL 1449 4th, CSA C22.2. It is constructed in a NEMA 4X plastic enclosure, with a LED light to demonstrate the protection status of the SPD.
⭕ Typical Applications ⭕
✔ Outdoor/Indoor and commercial LED lighting
✔ Telecommunication equipment ✔ Medical electronics ✔ Security & Alarm equipment
✔ Manufacturing ✔ Facilities Other Critical Electronic Equipment
